Power Meter

7130

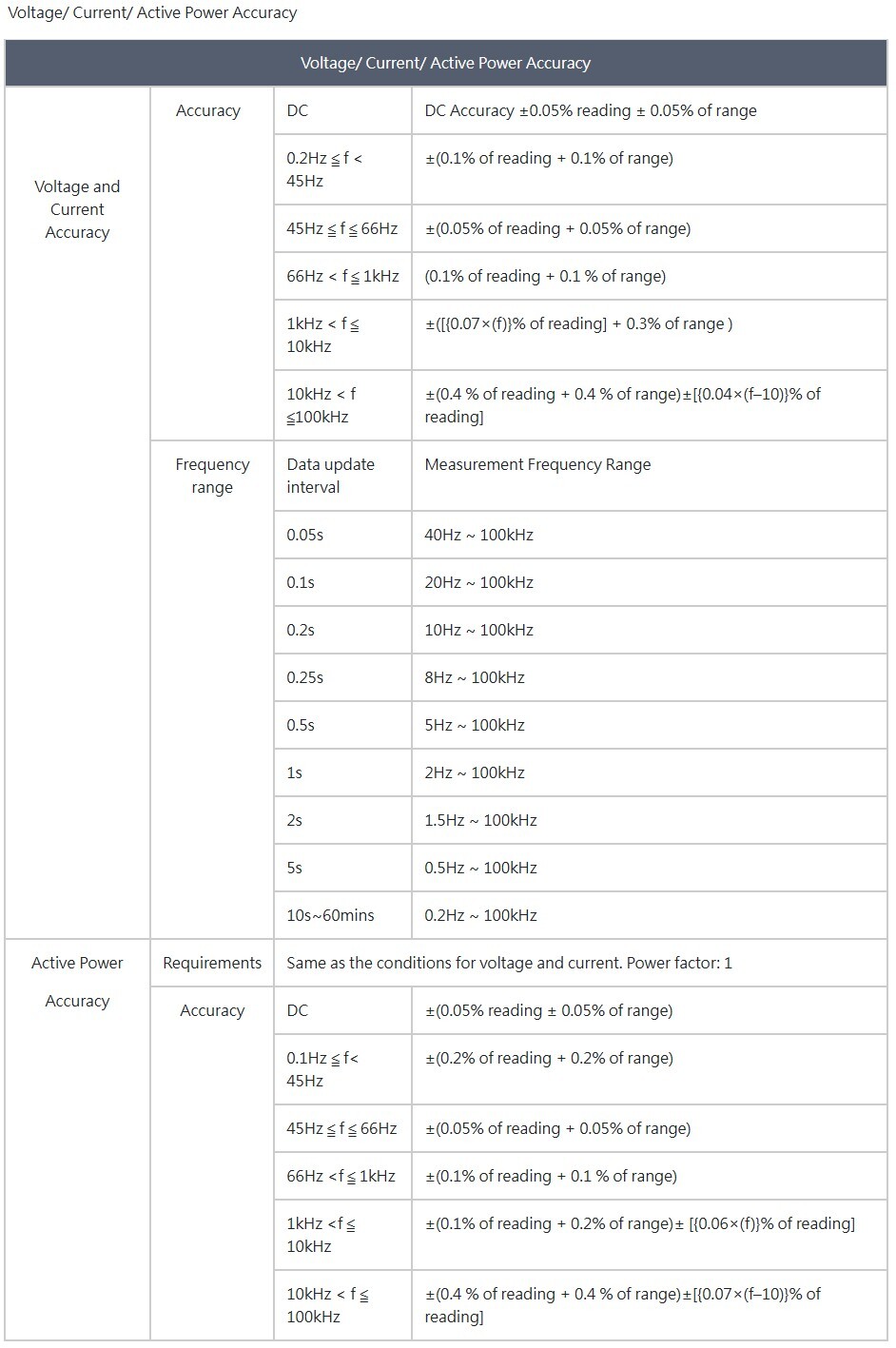

Ultra-High Measurement Accuracy ±0.05%
50th-Order Harmonic Analysis
High-Speed 500kSPS Sampling Rate
Simultaneous AC+DC Measurement and Display

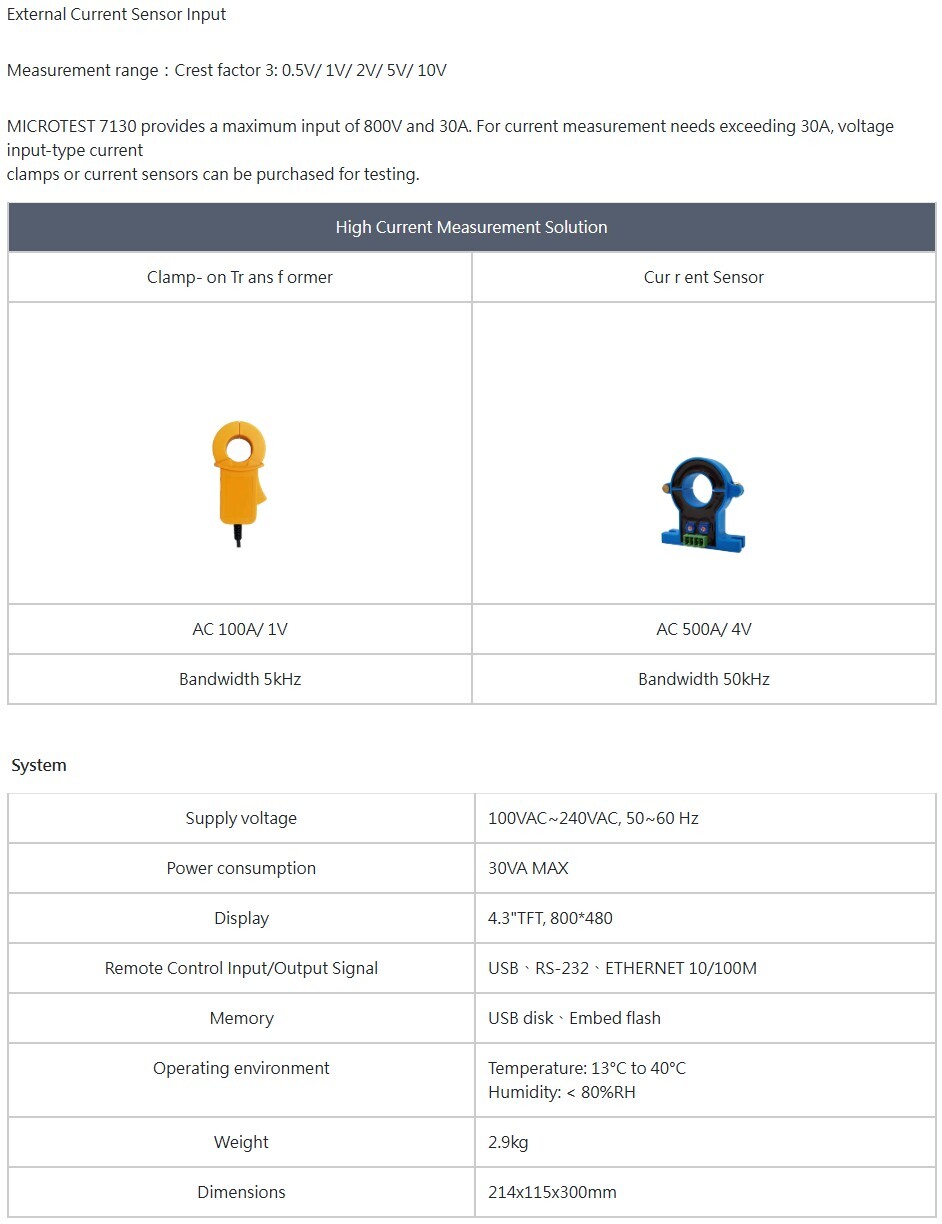

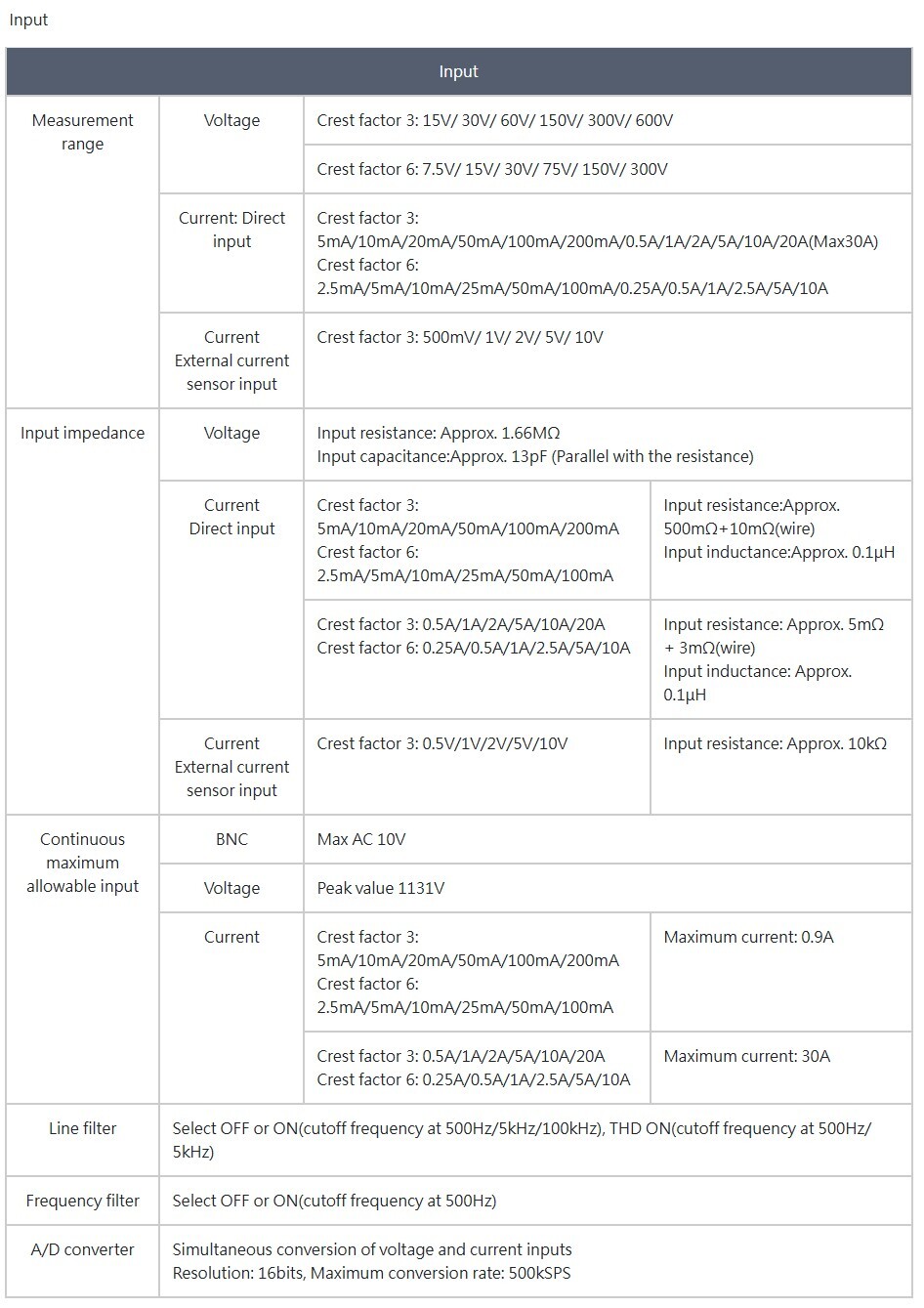

Rated Direct Input Voltage: 800V / Input Current: 30A
DC, 0.2Hz~100kHz Voltage/Current Measurement Bandwidth
4.3” Color Multifunctional Digital & Graphical LCD Display
Supports voltage and current waveform analysis mode

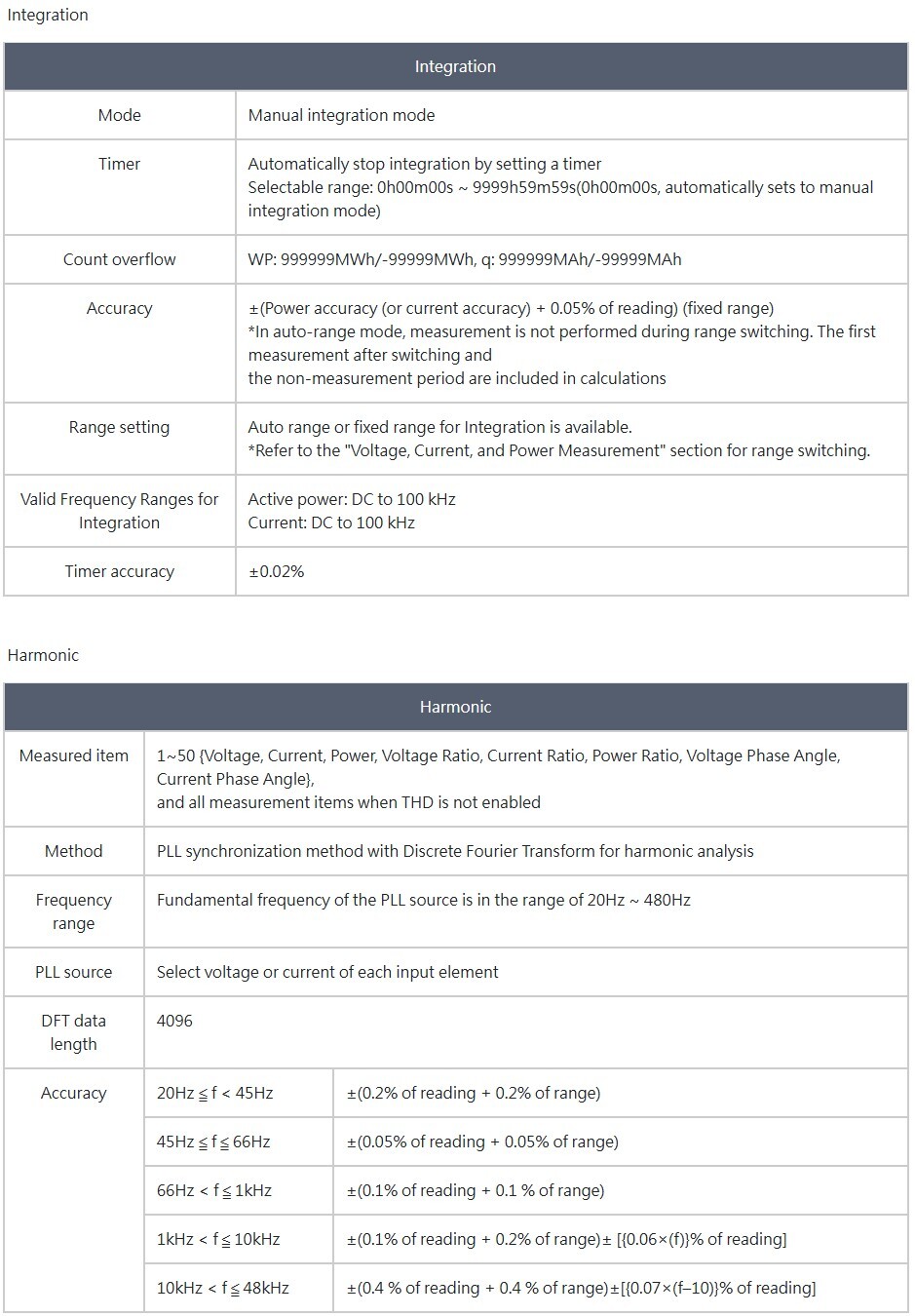

Automatic Integration up to 10,000 Hours with Simultaneous Harmonic Analysis
Minimum Current Range of 5mA & Power Resolution of 10μW
Supports Comparison Mode with Upper/Lower Limit PASS/FAIL Judgment

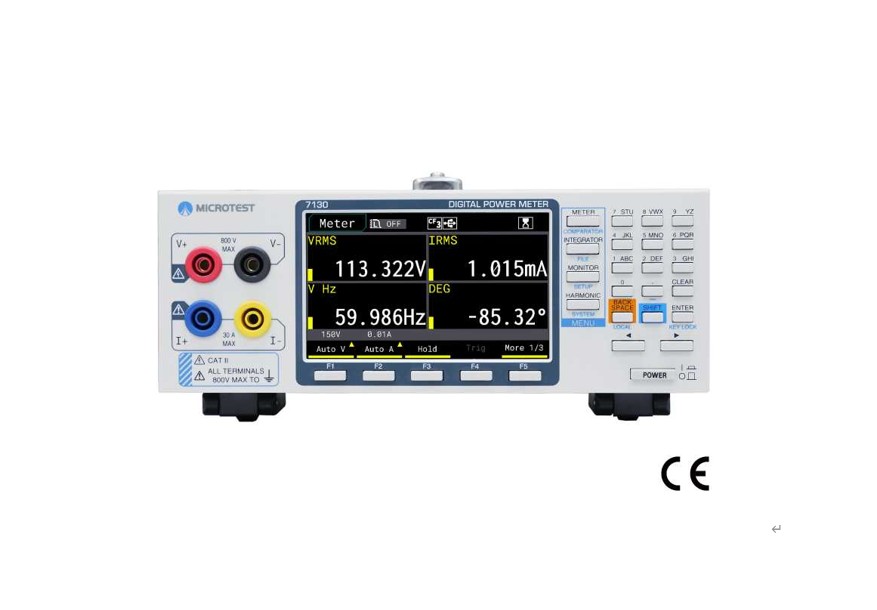

MICROTEST 7130 is designed for single-phase AC/DC power measurement, featuring a 0.2Hz–100kHz bandwidth, 500kSPS sampling rate, and ±0.05% accuracy in a compact design with a 4.3” TFT LCD. It supports 800V/30A direct input, 50th-order harmonic analysis, and simultaneous harmonic and integration measurements. The built-in graphical display and basic oscilloscope function allow real-time voltage and current waveform observation. USB Host enables direct waveform capture and data logging—no external oscilloscope needed. For standby power testing, it offers a 5mA range, 10μW resolution, and Meter mode displays 4, 8, or 16 parameters with real-time min/max tracking. Comparison mode provides PASS/FAIL evaluation, optimizing R&D, production, and quality control.
